Aircraft Structural Inspections would like to inform you of the King Air AD 2020-25-01. This airworthiness directive (AD) has gone in to effective January 11, 2021. To the right of this text is a list of the effected Aircraft Models and according serial numbers. This AD was prompted by information provided by Textron. The information states that a washer assembly may provide premature torque indication that could lead to cracking of the wing fitting a washer assembly provided with premature torque indication could lead to cracking of the wing fitting. The FAA is issuing this AD to prevent such fatigue cracks. The unsafe condition, if not addressed, could result in failure of the forward lower wing fitting, which could lead to wing separation and loss of airplane control. Please read these important documents. If you have questions on this AD and would like to discuss please give us a call. You can also contact us for scheduling and pricing with the information listed below.
Under similar model restraints there is an additional correction that must be made under the SB 57-01 that speaks on incorrectly sized washers that were installed with the Wing Bolts. This SB is to make you the Owner operator aware of the incorrect washer 95-110025-3 installed on the aft upper and lower wing boll and replace with a new 95-110025-7 Washer. Please read the attached document on this page to reference the Service bulletin and make sure you have the correct washers.
Contact Us: Links & Documents: .
Email: Beau@asindt.com King Air 2020-25-01 AD
Mobile Phone #: (870)-270-6007 King Air SB 57-01
Office Phone #: (870)-269-3556
Click to Enlarge the Images

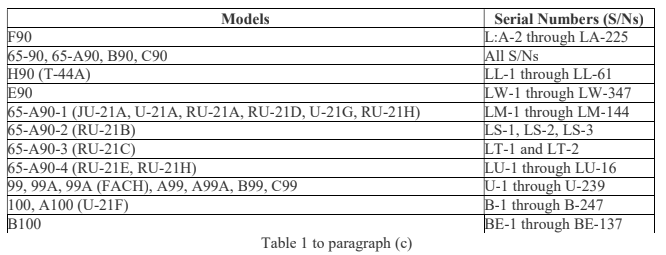

Applicable Models AD 2020-25-01 Click Image to Enlarge
